As utility-scale battery storage scales toward the megawatt-frequency wall, traditional Silicon IGBTs are turning into major thermal bottlenecks. Resolving this density crisis demands a complete architecture overhaul.

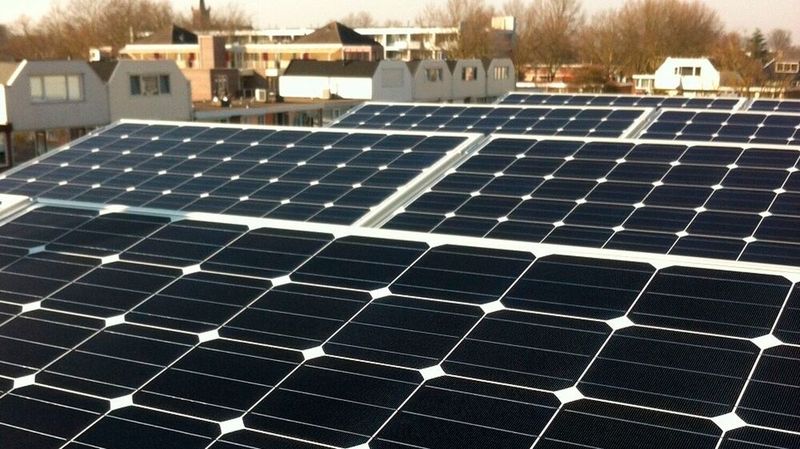

The global transition toward intermittent renewable energy sources—primarily utility-scale solar photovoltaics and wind farms—has shifted Battery Energy Storage Systems (BESS) from a niche ancillary option to the foundational backbone of the modern smart grid.

Today’s grid infrastructure no longer requires simple, passive backup reservoirs; it demands multi-megawatt platforms capable of rapid power injections, active frequency regulation, and dynamic grid-forming capabilities to stabilize transmission networks. However, as developers scale these battery racks toward higher capacities and tighter footprints, the power conversion systems (PCS) managing them are hitting a hard, physical barrier: the megawatt density wall.

At the heart of this density crisis lies the reliance on conventional Si IGBTs within central inverter topologies. For decades, Silicon has been the workhorse of industrial power electronics, but under the punishing operational profiles of utility-scale BESS, its material limits have been thoroughly breached.

Operating at standard 1500 VDC thresholds, Si IGBTs are physically constrained to low switching frequencies—typically between 1 kHz and 3 kHz—to keep thermal dissipation within manageable limits. This low-frequency operation creates a massive engineering penalty: it forces the use of oversized, heavy magnetic filters and bulky output transformers to smooth out current waveforms and comply with strict grid harmonic distortion parameters.

Consequently, traditional Silicon-based inverters turn into massive thermal bottlenecks. They lock utility BESS into a vicious cycle of rising cooling demands, expansive land footprint requirements, and elevated system-level complexity. To break through this power density ceiling and enable the next generation of compact, highly responsive energy storage infrastructures, the semiconductor landscape requires a complete architectural overhaul.

The industry must transition away from the switching speed bottlenecks of legacy Silicon and fully embrace high-voltage SiC topologies capable of reshaping the future of grid-tied power conversion.

SILICON CARBIDE

Resonac successfully develops 300 mm SiC single-crystal substrates

The 1500V DC-link: Thermal and volumetric mechanics

To bypass the physical limitations of Silicon, utility-scale BESS architectures are rapidly consolidating around higher operation thresholds, specifically 1500 VDC architectures. Operating at this voltage tier slashes system-level cabling costs and I²R conduction losses across the battery racks.

However, handling a 1500V link with legacy Silicon IGBTs forces design engineers into a punishing trade-off. Achieving the necessary blocking voltage requires thick Silicon drift regions, which exponentially spikes the internal on-resistance and locks the switching frequency into the low single-kilohertz range.

Silicon Carbide completely breaks this bottleneck through superior WBG physics. With a critical electric field breakdown strength of 3 MV/cm—exactly ten times higher than Silicon's 0.3 MV/cm—SiC substrate material can withstand multi-kilovolt potentials within a significantly thinner drift layer.

This structural reality allows a 1700V-rated SiC MOSFET to achieve an exceptionally low area-specific on-resistance (R_DS(ON)). Consequently, the thin-drift architecture slashes gate charge dynamics, enabling the device to switch from an on-to-off state up to an order of magnitude faster than a Silicon counterpart.

The mathematical reality of this physics update manifests as a dramatic reduction in transient power losses. In a standard central inverter conversion stage, moving to SiC MOSFETs slashes total turn-on (E_on) and turn-off (E_off) energy losses by up to 70% to 80%.

Because the semiconductor experiences minimal switching friction, the BESS power conversion system (PCS) can safely scale its operational frequency from a standard 2 kHz up to 16 kHz or 24 kHz without triggering a thermal runaway event.

Pushing the operating frequency past the 16 kHz threshold triggers a highly beneficial volumetric chain reaction across the entire inverter enclosure. The required physical inductance to smooth the output current waveform scales inversely with switching frequency:

ΔI_L ≈ V_DC / (4 . f_SW . L)

By multiplying f_sw tenfold, the mandatory value and physical volume of the output filter inductors collapse. Heavy, custom-wound iron-core chokes are replaced with compact, high-frequency magnetic architectures, shrinking the total volumetric footprint of the output filter section by 40% to 50%.

Furthermore, this extreme reduction in heat generation redefines system-level thermal management. High-power central inverters traditionally require heavy liquid-to-air heat exchangers, complex pumping loops, and a strict maintenance schedule to mitigate coolant leaks. SiC’s high thermal conductivity of 4.9 W/m·K (compared to Silicon's 1.5 W/m·K) ensures rapid heat transfer from the junction to the casing.

By marrying lower losses with rapid heat dissipation, system integrators can entirely eliminate liquid cooling infrastructure in favor of compact, high-velocity forced-air cooling setups. This transition shaves hundreds of kilograms off the inverter chassis, eliminates critical points of failure, and guarantees a significant boost to the Round-Trip Efficiency (RTE) of the entire battery energy storage site.

SIC MODULES

Beyond wire bonds: The advanced packaging revolution inside power modules

Dynamic grid-forming capabilities and signal integrity

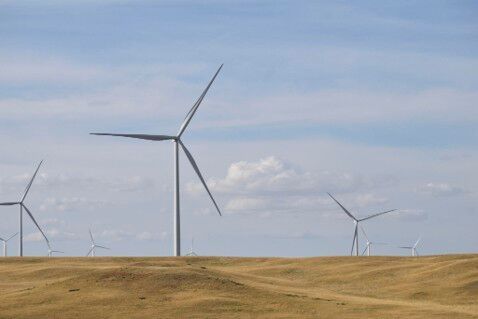

As renewable energy penetration reaches unprecedented levels, modern utility-scale BESS platforms must shift from simple grid-following (GFL) configurations to advanced Grid-Forming (GFM) architectures.

Traditional GFL inverters act as pure current sources, relying on a stable grid voltage vector and a Phase-Locked Loop (PLL) to synchronize their output. In contrast, GFM inverters function as voltage sources behind a virtual impedance. They actively establish grid voltage and frequency reference frames, allowing them to stabilize islanded networks and withstand sudden macro-level dropouts. Executing these sub-millisecond voltage corrections requires a highly responsive power stage, a parameter where Silicon Carbide excels over legacy Silicon.

The core control loop mechanics of a GFM inverter depend on a cascaded structure comprising an outer voltage loop and an inner current loop. The high switching frequencies enabled by SiC MOSFETs—scaling up to 16 kHz or 24 kHz—directly dictate the Nyquist frequency limit of the system.

This tenfold frequency multiplication allows engineers to aggressively increase the bandwidth of the digital PI/PR controllers within the digital signal processor (DSP). Consequently, the inner current control loop can achieve settling response times measured in microseconds, allowing the inverter to dynamically adjust its modulation index almost instantaneously during asymmetrical faults or transient voltage steps.

This rapid transient execution is essential for injecting synthetic inertia. When a large-scale power plant trips, the grid frequency drops at a rate defined by the Rate of Change of Frequency (RoCOF). Because the SiC stage responds without the phase delays inherent to low-frequency Silicon filters, it delivers pure active power to the catenary or substation lines within a fraction of a line cycle, effectively arresting the frequency dip before traditional spinning reserves can spin up.

However, operating at 1500 V with high switching speeds introduces a major signal integrity trade-off: extreme dv/dt transients, frequently exceeding 10 to 20 kV/µs. These steep voltage edges generate significant common-mode currents through parasitic capacitances, risking electromagnetic interference (EMI) that can corrupt low-voltage DSP control lines and trigger false overcurrent trips.

To isolate sensitive control intelligence from this harsh switching environment, the gate driver architecture must deploy specialized optocouplers or digital isolators featuring a minimum Common-Mode Transient Immunity (CMTI) of 100 to 150 kV/µs.

Furthermore, the physical layout must combine tight, symmetric DC-link busbar geometry with active Miller clamps to safeguard against parasitic turn-on events, ensuring absolute signal integrity while unleashing the full dynamic potential of Silicon Carbide on the smart grid.
