sponsoredHIGH VOLTAGE CONNECTORS New Series goes up to 9 Positions and 20 kV DC

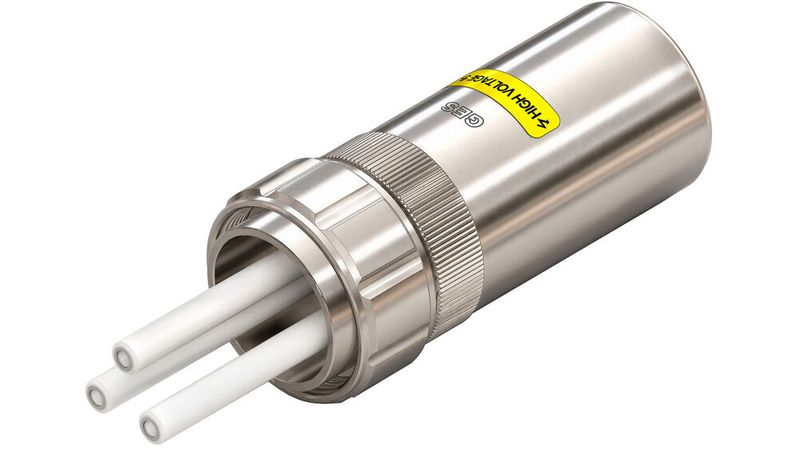

The new GES High Voltage MX Series bridges the critical market gap between 15 kV and 20 kV DC for multi-pin HV connectors. Featuring a rugged brass housing and configurations up to 9 positions, it is the definitive answer to the increasing demands of mobile testing and industrial quality assurance.

In high-voltage engineering, the leap from 15 kV to 20 kV DC often leaves developers with limited options — especially when multi-pin solutions are required. With the launch of the new MX Series, GES High Voltage introduces a connector line specifically engineered for this segment. Building on the success of the MC Series (up to 15 kV), the MX Series extends the portfolio to 20 kV DC (pin-to-pin), offering engineers unprecedented flexibility combined with maximum resilience.

Maximum Performance in a Streamlined Design

The MX Series is available in 3, 5, 7, and 9-pin configurations. A key highlight is the 9-pin variant, which has been fully laboratory-tested to ensure peak performance under load. For the user, the advantage is clear: various voltage ranges and flexible measurement points can be integrated into a single, compact connector. This results in a streamlined system design and significantly easier handling in the field.

"The MX Series Takes It All"

Engineered for the most demanding environments, the MX Series features a solid brass housing. Whether facing dust and water (IP 54), its mechanical durability makes it the ideal choice for mobile test units and automotive testing (HV components). Thanks to the crimp contact design, the series is also highly user-friendly, allowing customers to easily assemble the connectors themselves on-site, saving valuable time during system integration.

Engineered for Customization

"High-voltage experts aren't looking for off-the-shelf components; they need solutions that adapt to their specific systems," says Stephan Schwirtz, technical director at GES High Voltage and HV Connection Specialist. "The MX Series is designed with adaptability in mind. Features such as electrical interlocks or custom coding are available upon request to meet specific safety and functional requirements."

Key Technical Highlights at a Glance:

• Voltage Range: Up to 20 kV DC (pin-to-pin).

• Pole Configurations: 3, 5, 7, and 9-pin versions available.

• Housing: Ultra-rugged brass for harsh environments (dust, oil, heat).

• Assembly: Easy field termination via crimp technology.

• Applications: HV test systems, mobile test stations, industrial QA, and automotive component testing.

With the MX Series, GES High Voltage reinforces its position as an innovator in high-voltage connectivity. Where other solutions reach their limits, the MX Series excels—safe, rugged, and absolutely reliable.
