Mitsubishi Electric Corporation announced that, beginning January 21, it will start shipping samples of four new trenchsilicon carbide metal-oxide-semiconductor field-effect transistor (SiC-MOSFET) bare dies designed for use in power electronics equipment, such as electric vehicle (EV) traction inverters, onboard chargers, and power supply systems for renewable energy sources including solar power.
Trench SiC MOSFET bare dies enable compact, high-performance power semiconductor solutions. (symbolic image)
These new power semiconductor bare dies will contribute to efforts to embed advanced bare dies in various power electronics equipment to lower power consumption while maintaining performance.

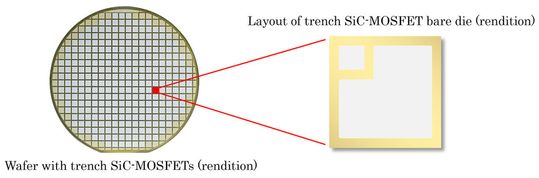

(left) Wafer with trench SiC-MOSFETs (rendition) (right) Layout of trench SiC-MOSFET bare die (rendition of shipping sample)
(Source: Mitsubishi Electric)
Mitsubishi Electric will exhibit the new trench SiC-MOSFET bare dies at the 40th Nepcon Japan R&D and Manufacturing show in Tokyo from January 21 to 23, as well as exhibitions in North America, Europe, China, India and elsewhere.
The market for power electronics equipment is expected to expand in line with global efforts targeting decarbonization. As part of this trend, the demand is growing for power semiconductors embedded with highly efficient bare dies that enable EV traction inverters and renewable-energy power supply systems to consume less power while maintaining their high performance and quality.
Since 2010, Mitsubishi Electric has been selling SiC power semiconductor modules that significantly reduce the power consumption of air conditioners, industrial equipment and railway vehicle inverter systems. To meet the demand for advanced power semiconductor bare dies, Mitsubishi Electric is now introducing four new trench SiC-MOSFET bare dies that are similar to the company’s existing trench SiC-MOSFET bare dies,1 but utilize a proprietary trench SiC-MOSFET structure to reduce power loss by approximately 50%2 compared to planar3 SiC-MOSFETs.
Furthermore, manufacturing processes including Mitsubishi Electric’s proprietary gate oxide film manufacturing method suppress variations in power loss and on-resistance to ensure stable quality over a long period of use.
Follow us on LinkedIn
Have you enjoyed reading this article? Then follow us on LinkedIn and stay up-to-date with daily posts about the latest developments on the industry, products and applications, tools and software as well as research and development.
Trench - A structure where grooves (trenches) are etched into the surface of the wafer, and gate electrodes are embedded.
Electric vehicle (EV) traction inverters - Power conversion device for directly driving EV and HEV traction motors.
Onboard chargers - One of the charging devices installed in an EV/PHEV, used to convert external AC power supply into DC power to charge the vehicle's battery.
References
1 - Announced on November 12, 2024: https://www.MitsubishiElectric.com/en/pr/2024/1112/
2 - Comparison of on-resistance after aligning the threshold voltage to that of existing planar MOSFETs of the same rated voltage.
3 - A structure where gate electrodes are placed on the surface of the wafer.
