Step-by-step mathematical dimensioning for energy harvesting power stages

ENERGY HARVESTING Step-by-step mathematical dimensioning for energy harvesting power stages

2026-07-27 From Diego de Azcuénaga 10 min Reading Time

Related Vendors

MRS Electronic GmbH & Co. KG

ROHM Semiconductor GmbH

MERSEN France SB

This article delivers a step-by-step mathematical framework to size components in ultra-low-power conversion stages, covering specific equations for dynamic impedance matching and quiescent current loss budgeting. This practical approach aims to guarantee system startup and long-term autonomy in battery-free IoT devices.

Practical mathematical methods to size storage, set dynamic impedance targets and budget nanoamp quiescent losses — ensuring reliable startup and sustained operation for energy‑harvesting sensor nodes.(Source: © Jai Izzam - stock.adobe.com) — Practical mathematical methods to size storage, set dynamic impedance targets and budget nanoamp quiescent losses — ensuring reliable startup and sustained operation for energy‑harvesting sensor nodes.
(Source: © Jai Izzam - stock.adobe.com)

The proliferation of battery-free industrial IoT nodes and smart edge devices has accelerated the demand for micro-energy harvesting systems. However, bridging the gap between ambient energy sources—such as thermal gradients or indoor light—and a stable regulated voltage rail presents severe power electronics challenges. Transducers often output unpredictable, millivolt-range voltages, meaning that the success of the system relies entirely on a power conversion stage designed with meticulous efficiency and sub-microamp current management.

To overcome these constraints, hardware engineers cannot rely on trial-and-error prototyping; they require a rigorous analytical approach to component dimensioning. This article provides a step-by-step mathematical framework to accurately calculate storage elements, manage discontinuous conduction modes (DCM), and optimize dynamic impedance matching. By implementing these precise power budgeting calculations, designers can drastically minimize quiescent losses, guarantee system start-up under worst-case source conditions, and ensure true long-term autonomy.

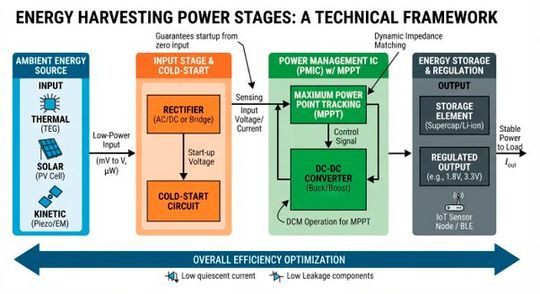

Step‑by‑step mathematical framework for sizing ultra‑low‑power conversion stages — equations for dynamic impedance matching, DCM sizing and quiescent‑loss budgeting to ensure cold‑start and long‑term autonomy in battery‑free IoT nodes.(Source: Diego de Azcuénaga) — Step‑by‑step mathematical framework for sizing ultra‑low‑power conversion stages — equations for dynamic impedance matching, DCM sizing and quiescent‑loss budgeting to ensure cold‑start and long‑term autonomy in battery‑free IoT nodes.
(Source: Diego de Azcuénaga)

Source characterization: Modeling R_s and V_oc

To design an efficient power conversion stage, the indispensable first step is the electrical modeling of the energy harvesting transducer. Because ambient energy sources are highly non-linear and critically dependent on environmental conditions, we must characterize their behavior using their Open-Circuit Voltage (V_oc) and Internal Source Resistance (R_s). The analytical models for the three most common transducers are detailed below:

1. Thermoelectric Generators (TEG)

A TEG converts a direct temperature gradient into electrical energy via the Seebeck effect. From an electrical standpoint, a TEG behaves linearly and is ideally modeled as a DC voltage source in series with an internal resistance.

Open-Circuit Voltage (V_oc): It is directly proportional to the temperature differential between the hot (T_h) and cold (T_c) plates of the device:

V_{oc_TEG} = α_{pn} \cdot N \cdot (T_{h} - T_{c}) = α_{TEG} \cdot Δ T

Where α_pn is the Seebeck coefficient of a single thermoelectric couple, N is the number of series-connected couples, and α_TEG is the global module coefficient.

Internal Resistance (R_s): It depends primarily on the electrical resistivity of the semiconductor materials used (p-type and n-type) and the geometry of the pellets:

R_{S TEG} = N \cdot (\frac{ρ_{p} \cdot L_{p}}{A_{p}} + \frac{ρ_{n} \cdot L_{n}}{A_{n}}) + R_{contact}

Where ⍴ represents resistivity, L is length, A is the cross-sectional area of the pellets, and R_contact accounts for the metallic interconnect resistance losses.

2. Photovoltaic Transducers (Indoor/Outdoor Solar Cells)

Unlike TEGs, a photovoltaic cell is inherently non-linear and is modeled using the single-diode equivalent circuit.

Open-Circuit Voltage (V_OC): This occurs when the output current is zero, and it scales logarithmically with light irradiance (I_ph):

V_{OC_PV} = n \cdot V_{t} \cdot \ln (\frac{I_{ph}}{I_{0}} + 1)

Where n is the diode ideality factor, V_t = k_B . T/q is the thermal voltage (≅ 26 mV at 25ºC), I_ph is the photo-generated current (proportional to light), and I₀ is the diode reverse saturation current.

Equivalent Internal Resistance (R_S): At the Maximum Power Point (MPP), the dynamic or equivalent internal resistance of the cell can be approximated by evaluating the derivative of the I-V curve:

R_{S_PV} \approx \frac{V_{MPP}}{I_{MPP}} \approx \frac{0.8 \cdot V_{OC_PV}}{I_{ph}}

For power stage design, R_{S_PV} is not a constant value; it decreases inversely proportional to the ambient light levels.

3. Piezoelectric Transducers (Kinetic/Vibrational Energy)

Piezoelectric elements generate electric charge when subjected to mechanical strain. Since they operate under sinusoidal vibrations, they are modeled in the AC domain as a current source in parallel with an internal capacitance (C_P) and a massive parasitic bulk leakage resistance (R_P).

Open-Circuit Voltage (V_OC): Under open-circuit conditions, the generated AC voltage amplitude is directly linked to the mechanical displacement (x) and the piezoelectric properties:

V_{OC_PIEZO} (t) = \frac{d_{31} \cdot Y \cdot b \cdot h}{C_{P} \cdot L} \cdot x (t)

Where d₃₁ is the piezoelectric strain constant, Y is Young's modulus, and b, h, L are the physical dimensions of the cantilever beam.

Internal Source Impedance (Z_S): Because the capacitive nature of the material dominates at typical industrial vibration frequencies (10 Hz - 200 Hz), the internal resistance is treated as a frequency-dependent reactance governed by the excitation frequency (⍵):

Z_{S_PIEZO} \approx \frac{1}{ω \cdot C_{P}} ∥ R_{P} \approx \frac{1}{ω \cdot C_{P}}

Where C_p is typically in the nanofarad (nF) range, resulting in very high source impedances (kΩ to MΩ), requiring power stages with ultra-high input impedance.

Sustainable architecture: Advanced photovoltaic solar glass (Source: © Jo-El - stock.adobe.com)

Impedance matching equations and dynamic MPPT

Once the transducers are properly characterized, the primary challenge of the power stage is to extract the maximum available power (P_max). According to the Maximum Power Transfer Theorem, this condition is met when the input impedance seen by the power stage (Z_in) matches the complex conjugate of the source impedance (Z_s*). Since these energy harvesting sources operate either in DC or at very low vibration frequencies, this task simplifies to an equivalent resistance matching.

1. The Maximum Power Transfer Criterion (DC)

For resistive sources such as TEGs or linearized photovoltaic systems, the power transferred into the converter's input can be expressed mathematically

P_{in} = {I_{in}}^{2} \cdot R_{in} = {\frac{V_{OC}}{R_{S} + R_{in}}}^{2} \cdot R_{in}

To find the optimal operating point, we take the derivative of the input power with respect to the converter's input resistance and set it to zero (dP_in/dR_in = 0), yielding the fundamental matching condition:
